Realistic photo + measured STL view
The first board uses real GAR-BOT component photos as the visual reference. The measured drawing below still calls out dimensions from the final STL files.
8real component photos on the breakdown board
PASSone shell, zero open edges
9 LEDground-effect modules called out as a real subsystem
Realistic exploded parts board
These are the actual reference photos from the GAR-BOT build folder. The center robot view shows where each real subsystem fits, while the measured STL drawing below keeps the print dimensions honest.
REAL PHOTOS + STL MEASUREMENTS
1Two claws mount on top of the shoulders
2Side-mounted light servo / claw controller boards
3Four direct-drive 24V motors, no chain drive
4RP5 relay HAT sealed in electronics bay
5IBT-2 motor drivers protected by covers
6RP Zero 2 W Pico Voice remote transmitter
79 RGB LED modules for sealed ground effect lighting
824V to 5V buck converter power module
1
Top-shoulder clawsBoth claw assemblies sit above the front shoulder bridge, not down on the lower frame.
2

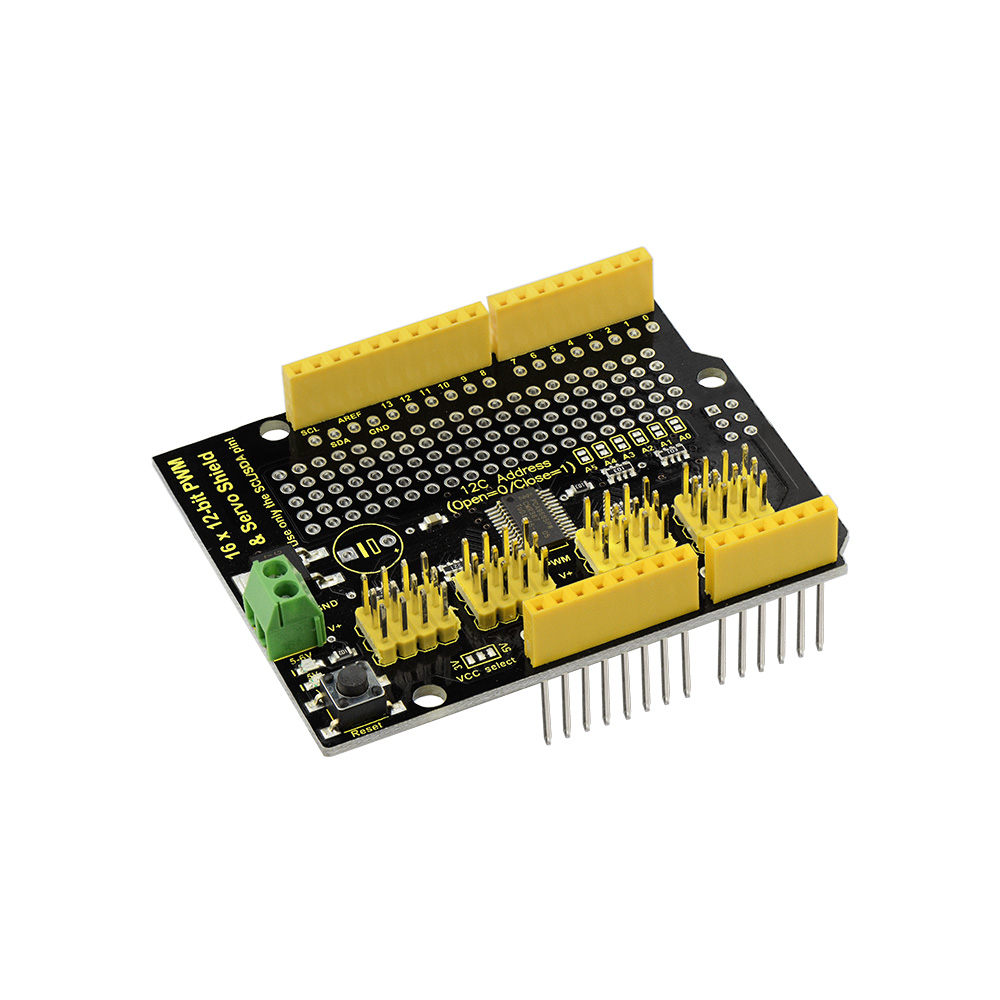

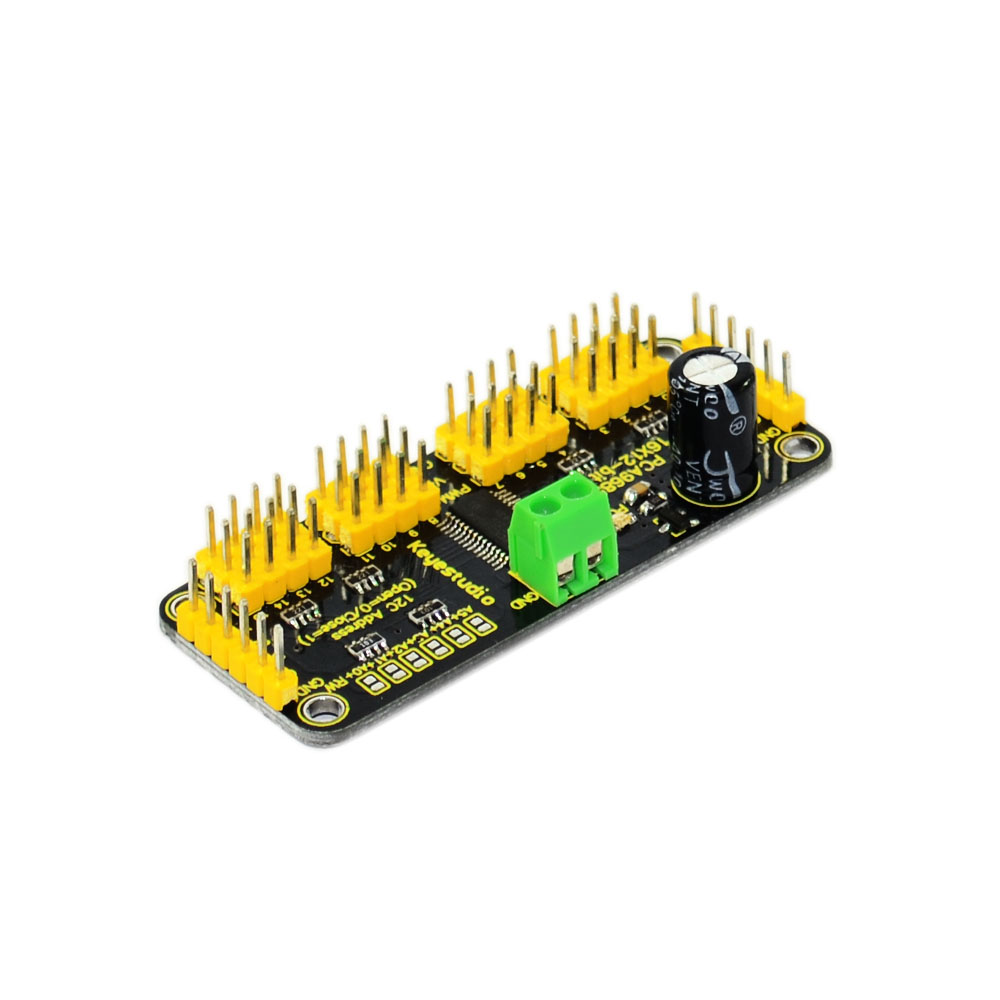

Side servo boardsLight servo/claw boards mount on the side service area and need a splash cover before wet use.
3
Direct-drive motorsNo chain drive: each motor mounts at a wheel corner with motor splash shields and drip-loop wire exits.
4

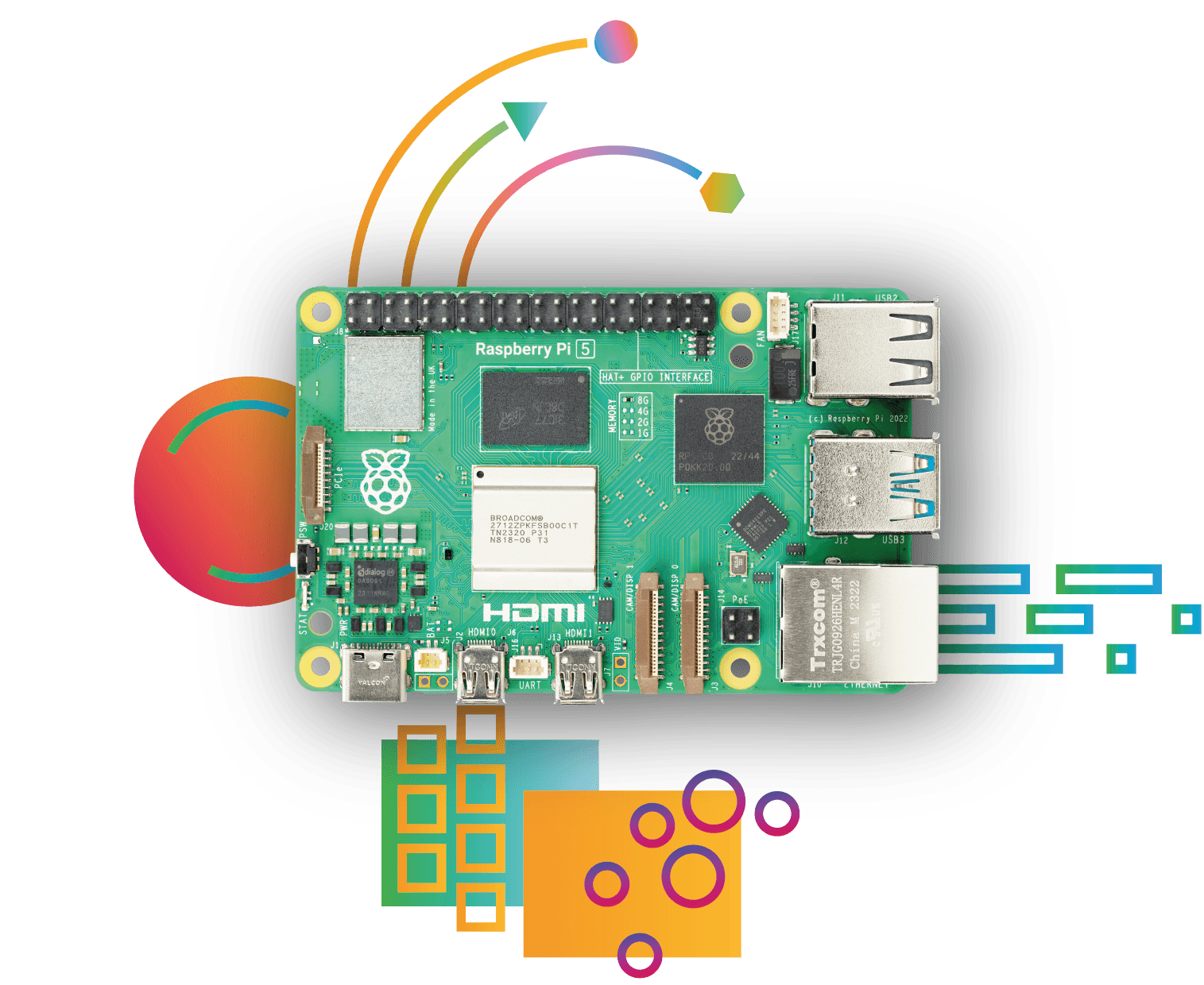

Sealed RP5 bayRP5, relay HAT, LoRa USB, and power wiring stay under the gasketed lid with cable glands.
5
Motor driver zoneIBT-2 modules are not exposed; use the printed covers and keep wire routes clear of moving parts.
6

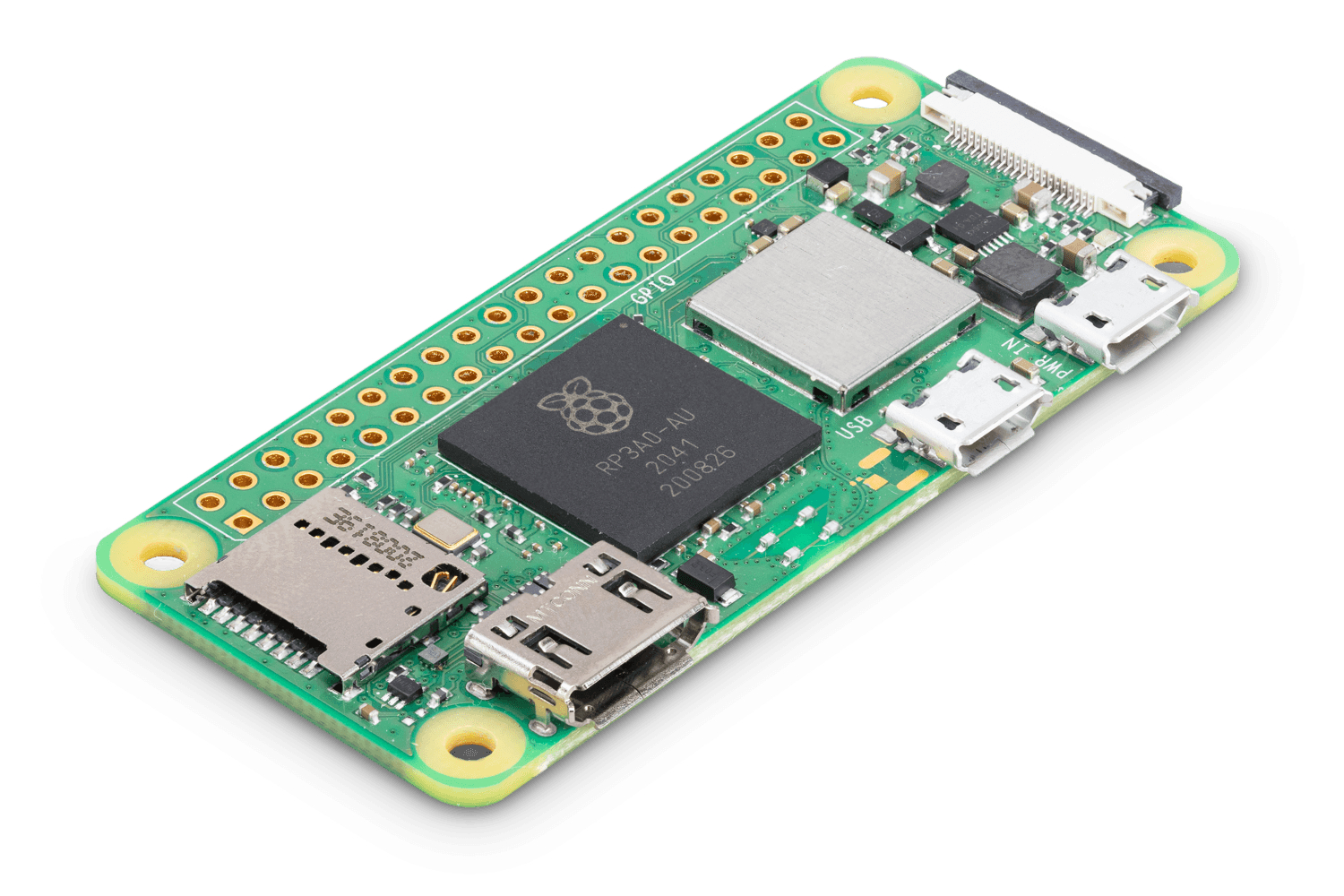

TransmitterRP Zero 2 W plus Pico Voice replaces the Pro Mini remote design.
7

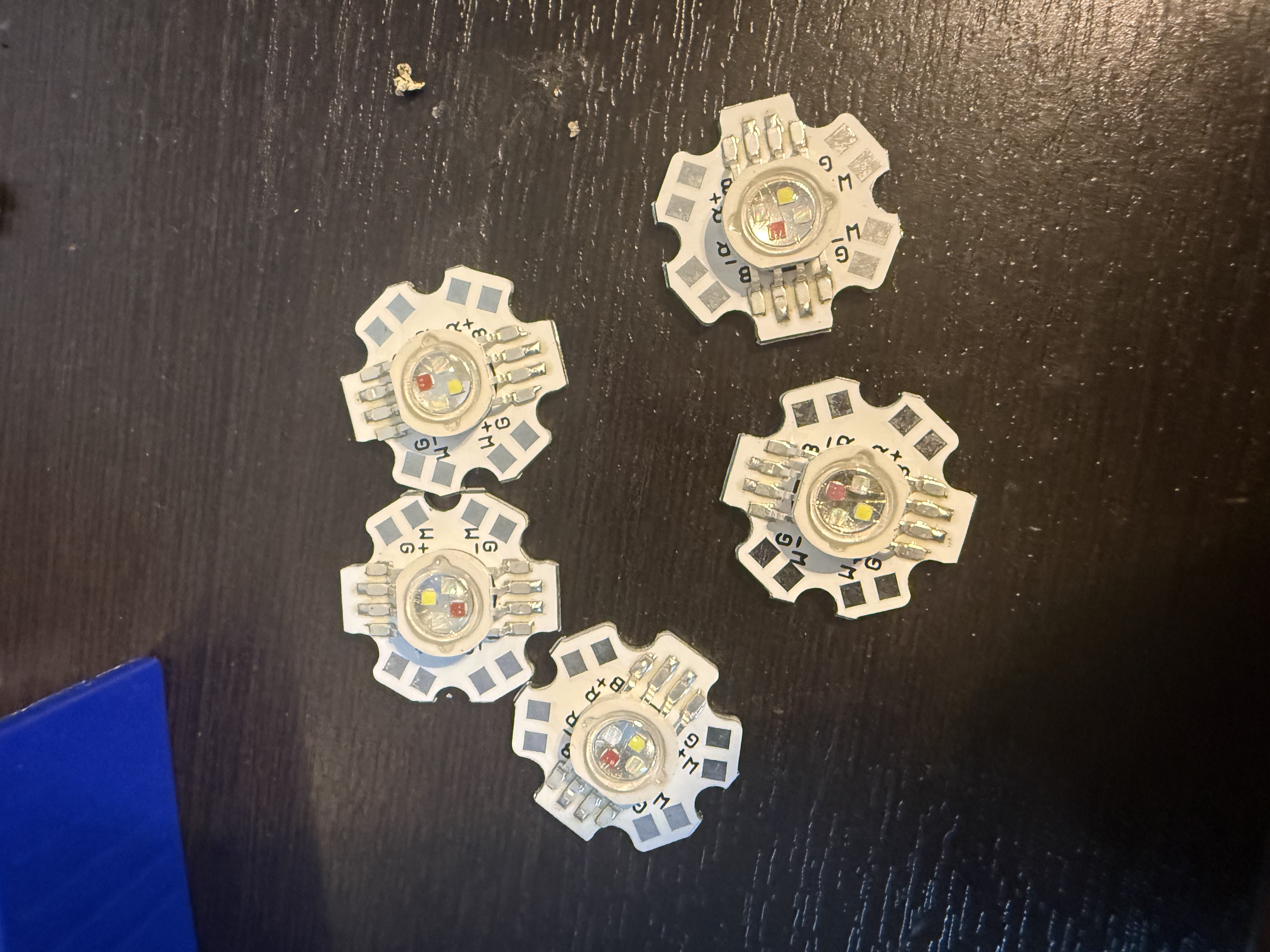

9 LED ground effectsUse the RGB star modules under the body as sealed ground lighting, routed through glands or covered channels.
8

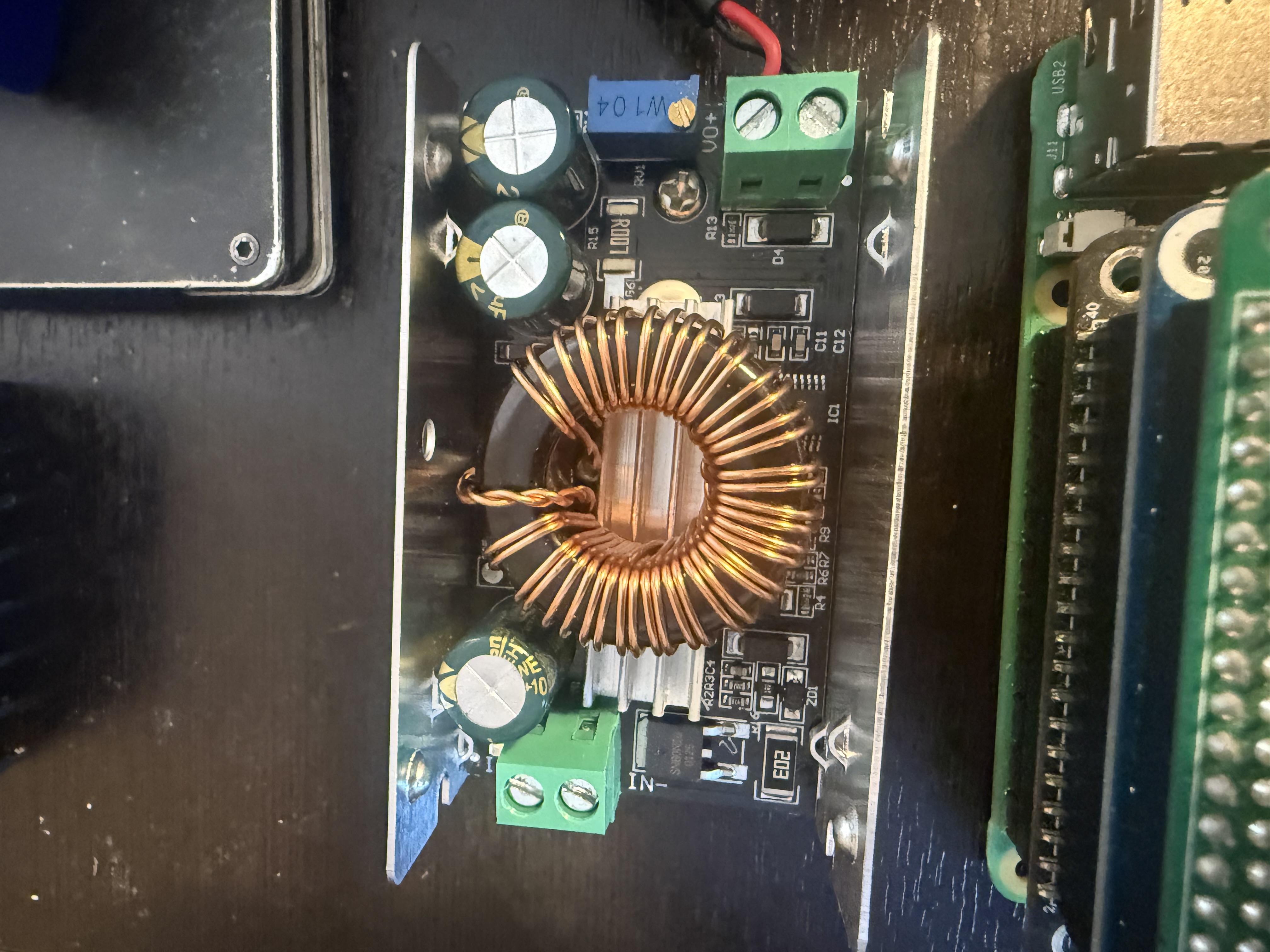

5V regulatorThe buck converter feeds the 5V electronics rail; the Pi 5 still needs a supply with enough current.
Part accuracy is defined from the exported STL files.
The current accuracy definition uses measured STL bounding boxes in millimeters, not visual guesses from the illustration. The 2026-06-14 mesh audit reports 38/38 PASS with one connected shell per file, zero open edges, and zero nonmanifold edges.
38/38STL files measured and listed below.
PASSPrint-integrity result for every exported part.
0Open edges and nonmanifold edges in the final audit.
mmAll dimensions are exported STL bounding boxes.
| Part file | Status | Measured dimensions mm | Triangles |
|---|---|---|---|
| buck_converter_cover.stl | PASS | 78.00 x 50.00 x 29.60 | 2124 |
| cable_gland_panel.stl | PASS | 130.00 x 52.00 x 10.20 | 5300 |
| claw_controller_cover.stl | PASS | 88.00 x 55.00 x 21.80 | 3904 |
| claw_gear_guard.stl | PASS | 58.80 x 58.80 x 8.60 | 2724 |
| claw_gripper_finger.stl | PASS | 92.00 x 10.00 x 17.80 | 1284 |
| claw_link_bar.stl | PASS | 74.00 x 9.00 x 6.40 | 3200 |
| claw_palm.stl | PASS | 62.00 x 34.00 x 13.80 | 2172 |
| drip_loop_cable_clip.stl | PASS | 28.00 x 12.00 x 10.00 | 932 |
| electronics_bay.stl | PASS | 230.00 x 160.00 x 61.00 | 7812 |
| forearm_wire_cover.stl | PASS | 130.00 x 24.00 x 18.00 | 2124 |
| frame_bottom_skid_plate.stl | PASS | 280.00 x 170.00 x 18.00 | 9824 |
| frame_center_battery_tray.stl | PASS | 230.00 x 128.00 x 20.00 | 7816 |
| frame_claw_bridge.stl | PASS | 245.00 x 104.00 x 26.40 | 16292 |
| frame_electronics_deck_plate.stl | PASS | 236.00 x 166.00 x 8.00 | 9424 |
| frame_front_crossmember.stl | PASS | 260.00 x 38.00 x 34.00 | 10624 |
| frame_left_side_rail.stl | PASS | 320.00 x 32.00 x 24.00 | 20760 |
| frame_rear_crossmember.stl | PASS | 260.00 x 38.00 x 39.00 | 7048 |
| frame_right_side_rail.stl | PASS | 320.00 x 32.00 x 24.00 | 20674 |
| frame_touchscreen_top_bar.stl | PASS | 225.00 x 28.00 x 17.80 | 4616 |
| frame_touchscreen_upright_left.stl | PASS | 58.00 x 24.00 x 145.00 | 3792 |
| frame_touchscreen_upright_right.stl | PASS | 58.00 x 24.00 x 145.00 | 3792 |
| gasketed_lid.stl | PASS | 230.00 x 160.00 x 7.00 | 5100 |
| ibt2_driver_cover.stl | PASS | 62.00 x 55.00 x 25.60 | 3308 |
| k2aley_lid_badge.stl | PASS | 150.00 x 48.00 x 5.80 | 1820 |
| k2aley_side_badge.stl | PASS | 185.00 x 40.00 x 5.80 | 1820 |
| left_claw_base_mount.stl | PASS | 86.00 x 62.00 x 14.20 | 5068 |
| lora_antenna_bulkhead_guard.stl | PASS | 42.00 x 42.00 x 14.80 | 2352 |
| motor_splash_shield.stl | PASS | 120.00 x 78.00 x 30.20 | 3560 |
| remote_lora_antenna_bulkhead.stl | PASS | 42.00 x 42.00 x 14.80 | 2352 |
| remote_zero2w_pico_voice_case_back.stl | PASS | 96.00 x 62.00 x 22.00 | 4912 |
| remote_zero2w_pico_voice_case_front.stl | PASS | 96.00 x 62.00 x 24.20 | 2572 |
| right_claw_base_mount.stl | PASS | 86.00 x 62.00 x 14.20 | 5068 |
| round_shoulder_mount.stl | PASS | 76.00 x 76.00 x 12.00 | 3184 |
| sealed_servo_pocket.stl | PASS | 48.00 x 42.00 x 31.80 | 2720 |
| touchscreen_bezel.stl | PASS | 205.00 x 135.00 x 6.80 | 2176 |
| touchscreen_rain_hood.stl | PASS | 223.00 x 98.00 x 16.60 | 5114 |
| water_warning_badge.stl | PASS | 180.00 x 62.00 x 5.80 | 1532 |
| wrist_servo_cradle.stl | PASS | 64.00 x 38.00 x 26.20 | 1788 |
